For applications outside these parameters, please consult us!

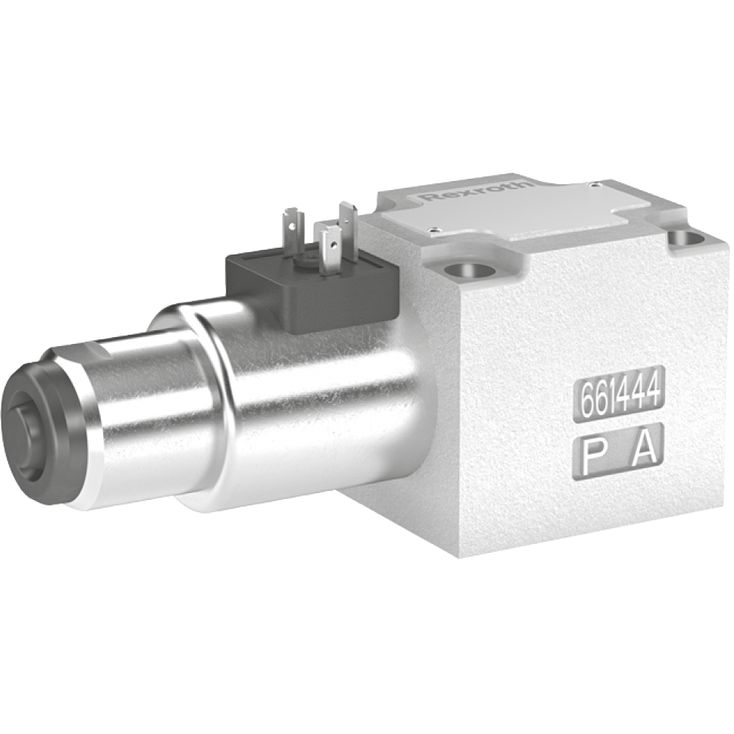

Size |
10 | ||
Installation position |
any | ||
Ambient temperature range 1) |
°C |
-20 … +50 | |
Storage temperature range |
°C |
+5 … +40 | |
Maximum storage time |
yrs |
1 | |
Weight |
3/2 directional seat valve |
kg |
3.3 |
4/2 directional seat valve |
kg |
4.7 | |
Surface protection |
Galvanized |
1) | Maximum 40 °C when using the cable sets DS2513. |
Size |
10 | ||
Maximum operating pressure |
Port P |
bar |
350 |
Port A |
bar |
350 | |
Port B |
bar |
350 | |
Port T |
See performance limits | ||
Maximum flow |
l/min |
40 | |
Hydraulic fluid |
see table "Hydraulic fluid" | ||
Hydraulic fluid temperature range 1) |
NBR seals |
°C |
-20 … +80 |
FKM seals |
°C |
-15 … +80 | |
Viscosity range |
mm²/s |
2.8 … 500 | |
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Class 20/18/15 |
1) | Observe the "Special application conditions for safe application" |
2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
Mineral oils |
HL, HLP, HLPD |
NBR, FKM |
DIN 51524 |
90220 |
|
Bio-degradable |
Insoluble in water |
HETG |
NBR, FKM |
ISO 15380 |
90221 |
HEES |
FKM |
||||
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
Important information on hydraulic fluids:
|
Voltage type |
Direct voltage | ||
Available voltages |
V |
24 | |
Voltage tolerance (nominal voltage) |
% |
± 10 | |
Admissible residual ripple |
% |
< 5 | |
Duty cycle/operating mode according to VDE 0580 |
S1 (continuous operation) | ||
Rated current |
mA |
950 | |
Switching time according to ISO 6403 1) |
ON |
ms |
40 … 80 |
OFF |
ms |
10 … 25 | |
Maximum switching frequency |
Hz |
1 | |
Maximum switch-off voltage peaks Solenoid 2) |
V |
500 | |
Nominal power with ambient temperature 20 °C |
W |
23 | |
Maximum power with 1.1 x nominal voltage and an ambient temperature of 20 °C |
W |
28.8 | |
Protection class according to DIN EN 60529 3) |
IP65 |
1) | The switching times were determined at a hydraulic fluid temperature of 40 °C and a viscosity of 46 mm2/s. Deviating hydraulic fluid temperatures can result in different switching times. Switching times change dependent on operating time and application conditions. |
2) | Suitable damping by user required |
3) | If a suitable mating connector and a correctly mounted electric connection are used. |
Area of application |
II 3G | II 3D | ||
Type of protection valve |
c (EN 13463-5) | |||
Type of protection valve solenoid according to EN 60079-7 / EN 60079-31 |
Ex ec IIC T3 Gc | Ex tc IIIC T140°C Dc | ||
Maximum surface temperature 1) |
°C |
140 | ||
Temperature class |
T3 | |||
Type examination certificate solenoid |
BVS 12 ATEX E 062 X | |||
Requirements on the mating connector |
Temperature rating 2) |
°C |
≥ 100 | |
Area of application according to directive 2014/34/EU |
II 3G | II 3D | ||
Protection class in plugged condition 3) |
IP65 |
1) | Surface temperature > 50 °C, provide contact protection. |
2) | Transfer temperature at the connector of the valve solenoid 85 °C at ambient temperature 40 °C. |
3) | If a suitable mating connector and a correctly mounted electric connection are used. |
Area of application |
II 3G | II 3D | |
Type of protection marking of valve |
2Ex nA II T3 Gc X | Ex tc IIIC T140°C Dc X | |
Maximum surface temperature 1) |
°C |
140 | |
Temperature class |
T3 | ||
Certificate of conformity |
No TC RU C-DE.ГБ08.В.02161 |
1) | Surface temperature > 50 °C, provide contact protection. |
Symbol |
Comment |
Operating pressure in bar |
Flow in l/min |
|||||
P |
A |
B |
T |
|||||
2-way circuit |
UK |
![]() |
With 2/2-way circuits, port P or T must be closed. |
350 |
350 |
‒ |
350 |
40 |
CK |
![]() |
350 |
350 |
‒ |
350 |
40 |
||
3-way circuit |
UK |
![]() |
350 |
350 |
‒ |
350 |
40 |
|
CK |
![]() |
350 |
350 |
‒ |
350 |
40 |
||
4-way circuit(flow only possible in the direction of arrow) |
D |
![]() |
3/2 directional valve (symbol "UK") in connection with Plus-1 plate: pP ≥ pA ≥ pB ≥ pT |
350 |
350 |
350 |
pP/pA/pB-40 |
40 |
Y |
![]() |
3/2 directional valve (symbol "CK") in connection with Plus-1 plate: pP ≥ pA ≥ pB ≥ pT |
350 |
350 |
350 |
pP/pA/pB-40 |
40 |
Notice:
The performance limits were determined when the solenoids were at operating temperature, at 10 % undervoltage and without tank preloading.
