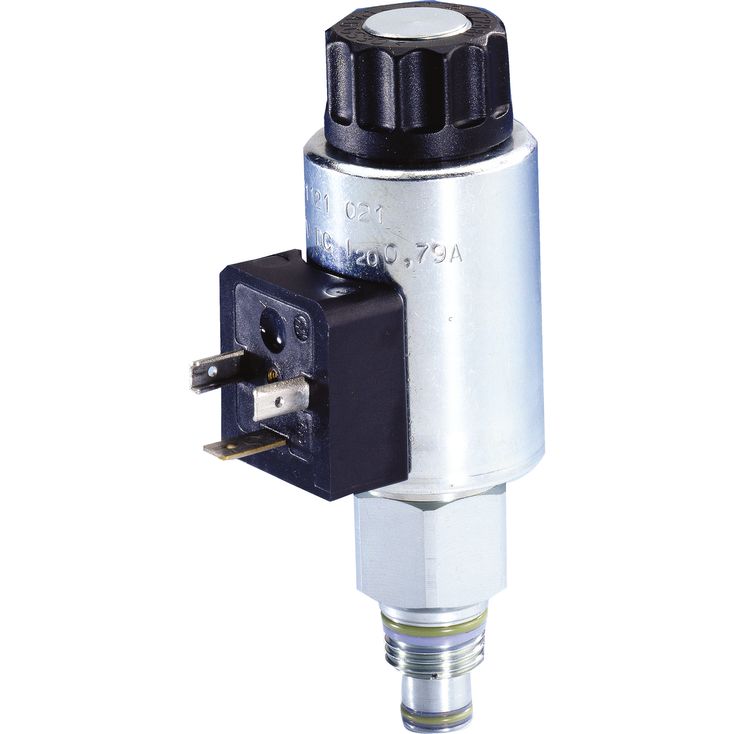

2/2方向座阀，直接操作电磁阀驱动KSDE.8 N / P（高性能）

发布日期：2019-03-27　阅读：次

特征

Technical data

general

Size			8
Maximum operating pressure	Version		„U“	„R“
Maximum operating pressure	Version	bar	500 ¹⁾	350 ²⁾
Maximum flow	Version		„U“	„R“
Maximum flow	Version	l/min ³⁾	3	5
Hydraulic fluid			see table
Hydraulic fluid temperature range		°C	-40 … +80
Viscosity range		mm²/s	4 … 500
Maximum admissible degree of contamination of the hydraulic fluid ⁴⁾			Class 20/18/15 according to ISO 4406 (c)
Load cycles	Version (R: 350 bar [5100 psi]; U: 500 bar [5100 psi])		„U“	„R“
Load cycles	Version (R: 350 bar [5100 psi]; U: 500 bar [5100 psi])	million	5	10

¹⁾	On all ports if P ≥ A; for design reasons
²⁾	At all ports
³⁾	See performance limits
⁴⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons		HL,HLP,HLPD,HVLP,HVLPD	FKM	DIN 51524
Environmentally compatible	Insoluble in water	HETG	FKM	ISO 15380
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Containing water	Water-free	HFDU, HFDR	FKM	ISO 12922
Containing water	Containing water	HFAS	FKM	ISO 12922
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. Flame-resistant – containing water: The maximum pressure differential per control edge is 175 bar. Otherwise, there is increased cavitation erosion. Tank preloading < 1 bar or > 20% of the pressure differential. The pressure peaks should not exceed the maximum operating pressures! Environmentally compatible: When using environmentally compatible hydraulic fluids that are simultaneously zinc-solving, zinc may accumulate in the medium (700 mgzinc per pole tube).

With the electrical connection "K4", the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.

electrical

Voltage type			Direct voltage
Power supply ¹⁾		V	12 24
Voltage tolerance against ambient temperature			See characteristic curves
Power consumption		W	22
Duty cycle		%	100
Maximum coil temperature ²⁾		°C	150
Switching time according to ISO 6403 (solenoid horizontal)	ON (➀ → ➁)	ms	≤ 80
	OFF (➁ → ➀)	ms	≤ 80
Maximum switching frequency	Version		„U“	„R“
		Hz	3600	9000
Protection class according to DIN EN 60529	Version "K4"		IP65 (with mating connector mounted and locked)
	Version "C4"		IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127)
	Version "K40"		IP69K with mating connector mounted and locked

¹⁾	Other voltages upon request
²⁾	Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

For applications outside these parameters, please consult us!
