Size |
6 | ||
|
Weight |

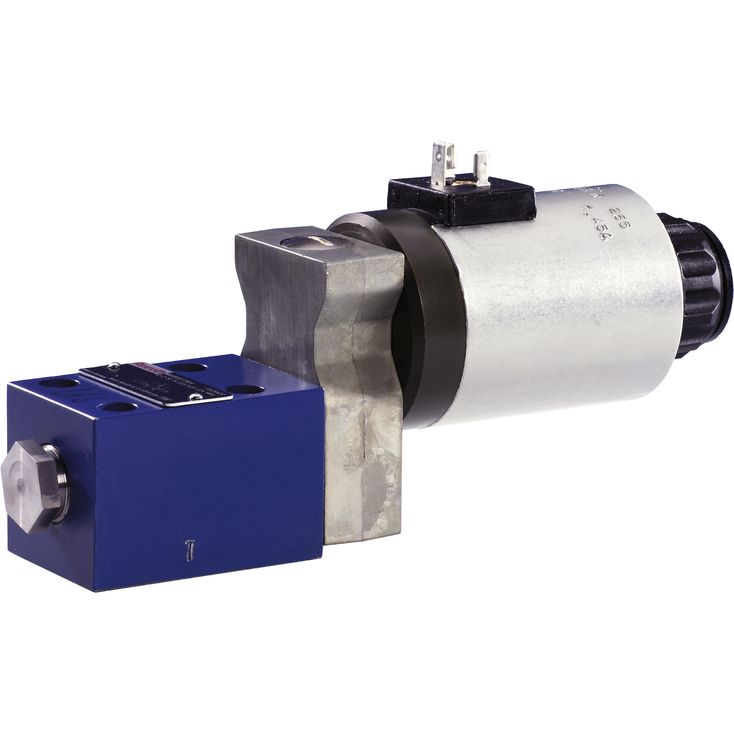

3/2 directional seat valve without detent |
kg |
3.8 |
|
3/2 directional seat valve with detent |
kg |
5.6 | |
|
4/2 directional seat valve without detent |
kg |
4.6 | |
|
4/2 directional seat valve with detent |
kg |
6.4 | |
|
Installation position |
any | ||
|
Ambient temperature range 1) |
°C |
-15 … +50 | |
| 1) | Mineral oil |
|
Size |
6 | ||
|
Maximum operating pressure |
Port P |
bar |
420 630 |
|
Port A |
bar |
420 630 |
|
|
Port B |
bar |
420 630 |
|
|
Maximum flow |
l/min |
25 | |
|
Hydraulic fluid |
see table | ||
|
Hydraulic fluid temperature range 1) |
°C |
-15 … +80 | |
|
Viscosity range |
mm²/s |
0.6 … 500 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | Mineral oil |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
|
Oil-in-water emulsion, water glycol, mineral oil |
HL, HLP |
FKM, NBR |
DIN 51524 |
|
|
Bio-degradable |
Insoluble in water |
HEES (synthetic esters) |
FKM |
VDMA 24568 |
|
HETG (rape seed oil) |
FKM, NBR |
|||
|
Soluble in water |
HEPG (polyglycols) |
FKM |
VDMA 24568 |
|
|
Other hydraulic fluids on request |
||||
electrical
|
Voltage type |
Direct voltage | AC voltage | ||
|
Available voltages |
V |
12 / 24 / 42 / 48 / 96 / 110 / 205 1) | 110 / 120 / 230 | |
|
Voltage tolerance (nominal voltage) |
% |
± 10 | ||
|
Power consumption |
Solenoid valve |
W |
35 | |
|
Solenoid detent |
W |
30 | ||
|
Duty cycle |
% |
100 | ||
|
Switching time according to ISO 6403 |
ON (420 bar) |
ms |
40 … 70 | |
|
ON (630 bar) |
ms |
50 … 80 | ||
|
OFF (420 bar) |
ms |
20 … 30 | ||
|
OFF (630 bar) |
ms |
15 … 40 | ||
|
Maximum switching frequency |
Hz |
3600 | ||
|
Operating pressure ≤350 bar |
Hz |
3600 | ||
|
Protection class according to DIN EN 60529 |
IP65 (with mating connector mounted and locked) | |||
|
Maximum coil temperature |
°C |
150 | ||
| 1) | Other voltages upon request |
In the electrical connection, the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.
For applications outside these parameters, please consult us!
