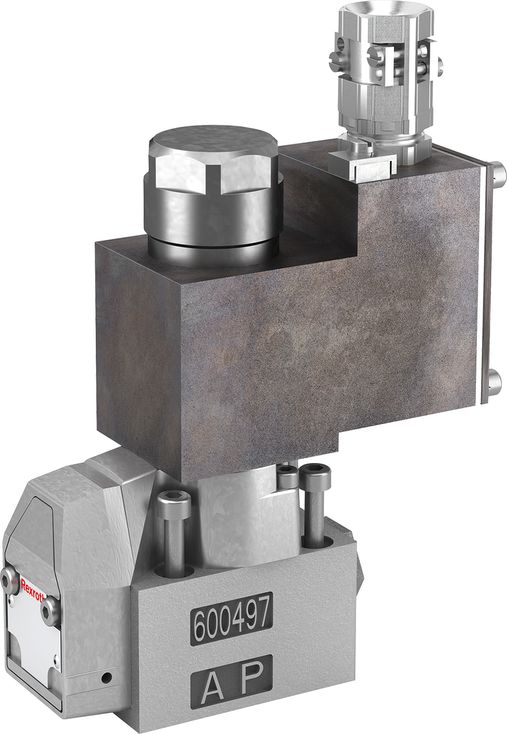

2 / 2,3 / 2和4/2方向座阀，直接操作，带电磁阀驱动SEW 6 ...... XE

发布日期：2019-03-26　阅读：次

特征

Technical data

For applications outside these parameters, please consult us!

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	FKM	ISO 15380	90221
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620 )	NBR	ISO 12922	90223
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). Ignition temperature >180 °C. Flame-resistant – containing water: Maximum operating pressure 210 bar Pressure differential <15 bar Pressure pre-loading at the tank port >20% of the pressure differential, otherwise increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 50 … 100% Maximum hydraulic fluid temperature 60 °C

electrical

Voltage type		Direct voltage	AC voltage
Available voltages	V	24 / 48 / 96 / 110	110 / 230
Voltage tolerance (nominal voltage)	%	- 5 + 10
Admissible residual ripple	%	< 5	-
Duty cycle/operating mode according to VDE 0580		S1 (continuous operation)
Switching time according to ISO 6403		see table
Maximum switching frequency	1/h	15000	7200
Nominal power with ambient temperature 20 °C	W	17
Maximum power with 1.1 x nominal voltage and an ambient temperature of 20 °C	W	20.6
Protection class according to DIN EN 60529 ¹⁾		IP66

¹⁾	With correctly installed electrical connection

Special application conditions for a safe application

Maximum ambient temperature:
In case of bank assembly, as long as only one solenoid is energized at a time, and in case of individual assembly: +70 °C
In case of bank assembly when more than one solenoid is energized at a time: +60 °C

The maximum temperature of the surface of the valve jacket is 120 °C. This has to be considered when selecting the connection cable and/or contact of the connection cable with the surface of the jacket is to be prevented.

Pressure p	Flow q_V	DC solenoid						AC solenoid
		t_ON without tank pressure				t_OFF		t_ON without tank pressure				t_OFF
		U	C	D	Y	C, U	D, Y	U	C	D	Y	U	C	D	Y
70 bar	25 l/min	30	40	30	40	15	15	25	40	25	40	45	65	45	65
140 bar	25 l/min	30	50	30	50	15	15	25	40	25	40	65	65	65	65
280 bar	25 l/min	35	60	35	60	15	15	25	45	25	45	75	65	75	65
320 bar	25 l/min	40	70	40	70	15	15	25	45	25	45	80	65	80	65
420 bar	25 l/min	45	70	45	70	15	15	30	45	30	45	100	65	100	65
Notice: The switching times were determined at a hydraulic fluid temperature of 40 °C and 46 mm²/s. Deviating hydraulic fluid temperatures can result in different switching times. Switching times change dependent on operating time and application conditions.

	Symbol	Comment	Operating pressure in bar				Flow in l/min
	Symbol	Comment	P	A	B	T	Flow in l/min
2-way circuit	P	Pressure at P ≥ T	420	‒	‒	100	25
2-way circuit	N	Pressure at P ≥ T	420	‒	‒	100	25
3-way circuit	U	Pressure at P ≥ A ≥ T	420	420	‒	100	25
3-way circuit	C	Pressure at P ≥ A ≥ T	420	420	‒	100	25
2-way circuit(as unloading function only)	U	Before switching from the initial position to the spool position, pressure must be applied to port A. Pressure at A ≥ T	‒	420	‒	100	25
2-way circuit(as unloading function only)	C	Pressure at A ≥ T	‒	420	‒	100	25
4-way circuit(flow only possible in the direction of arrow!)	D	Valve (symbol U) in connection with Plus-1 plate P > A ≥ B > T	420	420	420	100	25
	Y	Valve (symbol C) in connection with Plus-1 plate P > A ≥ B > T	420	420	420	100	25
Notice: Please observe the general notes (see chapter "Information"). The performance limits were determined when the solenoids were at operating temperature, at 10 % undervoltage and without tank preloading.
