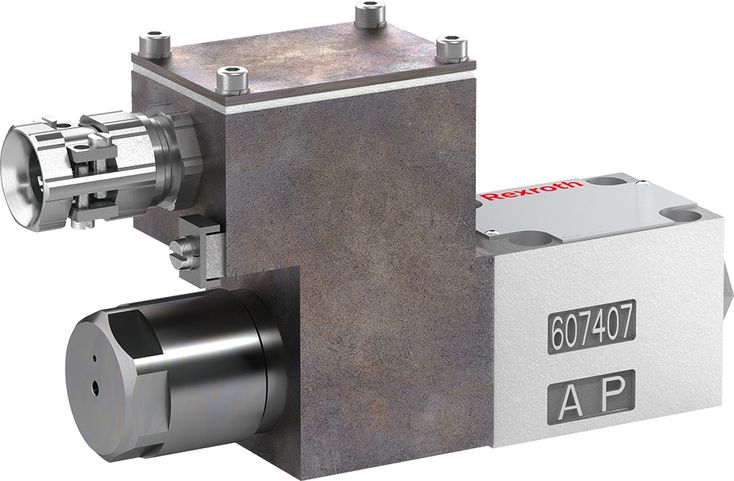

3/2和4/2方向座阀，直接操作，带电磁阀驱动SED 6 ...... XE

发布日期：2019-03-26　阅读：次

特征

Technical data

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). Ignition temperature >180 °C

electrical

Voltage type		Direct voltage	AC voltage
Available voltages	V	24 / 48 / 96 / 110	110 / 230
Voltage tolerance (nominal voltage)	%	- 5 + 10
Admissible residual ripple	%	< 5	-
Duty cycle/operating mode according to VDE 0580		S1 (continuous operation)
Switching time according to ISO 6403		see table
Maximum switching frequency	1/h	15000	7200
Nominal power with ambient temperature 20 °C	W	17
Maximum power with 1.1 x nominal voltage and an ambient temperature of 20 °C	W	20.6
Protection class according to DIN EN 60529 ¹⁾		IP66

¹⁾	With correctly installed electrical connection

Special application conditions for a safe application

Maximum ambient temperature:
In case of bank assembly, as long as only one solenoid is energized at a time, and in case of individual assembly: +70 °C
In case of bank assembly, if more than one solenoids are energized simultaneously: +60 °C

The maximum temperature of the surface of the valve jacket is 120 °C. This has to be considered when selecting the connection cable and/or contact of the connection cable with the surface of the jacket is to be prevented.

Pressure p	Flow q_V	DC solenoid						AC solenoid
		t_ON without tank pressure				t_OFF		t_ON without tank pressure				t_OFF
		UK	CK	D	Y	CK, UK	D, Y	UK	CK	D	Y	UK	CK	D	Y
70 bar	25 l/min	50	45	55	50	10	10	50	65	55	70	50	45	55	50
140 bar	25 l/min	65	45	70	50	10	15	55	65	60	70	50	50	55	55
210 bar	25 l/min	75	55	80	60	10	15	65	65	70	70	50	55	55	60
280 bar	25 l/min	90	55	95	60	15	20	80	65	85	70	50	65	55	70
315 bar	25 l/min	95	55	100	60	15	20	95	65	100	70	50	65	55	70
350 bar	25 l/min	100	55	105	60	20	25	110	65	115	70	50	65	55	70
Notice: The switching times were determined at a hydraulic fluid temperature of 40 °C and 46 mm²/s. Deviating hydraulic fluid temperatures can result in different switching times. Switching times change dependent on operating time and application conditions.

	Symbol	Comment	Operating pressure in bar				Flow in l/min
	Symbol	Comment	P	A	B	T	Flow in l/min
2-way circuit	UK	With 2/2-way circuits, port P or T must be closed by the customer!	350	350	‒	350	25
2-way circuit	CK		350	350	‒	350	25
3-way circuit	UK		350	350	‒	350	25
3-way circuit	CK		350	350	‒	350	25
4-way circuit(flow only possible in the direction of arrow!)	D	3/2 directional valve (symbol “UK”) in connection with Plus-1 plate: p_P ≥ p_A ≥ p_B ≥ p_T	350	350	350	p_P/p_A/p_B-40	25
	Y	3/2 directional valve (symbol “CK”) in connection with Plus-1 plate: p_P ≥ p_A ≥ p_B ≥ p_T	350	350	350	p_P/p_A/p_B-40	25

Notice

The switching power limits were established while the solenoids were at operating temperature, at 10 % undervoltage and without tank preloading.

Please observe the general notes (see chapter "Information").
