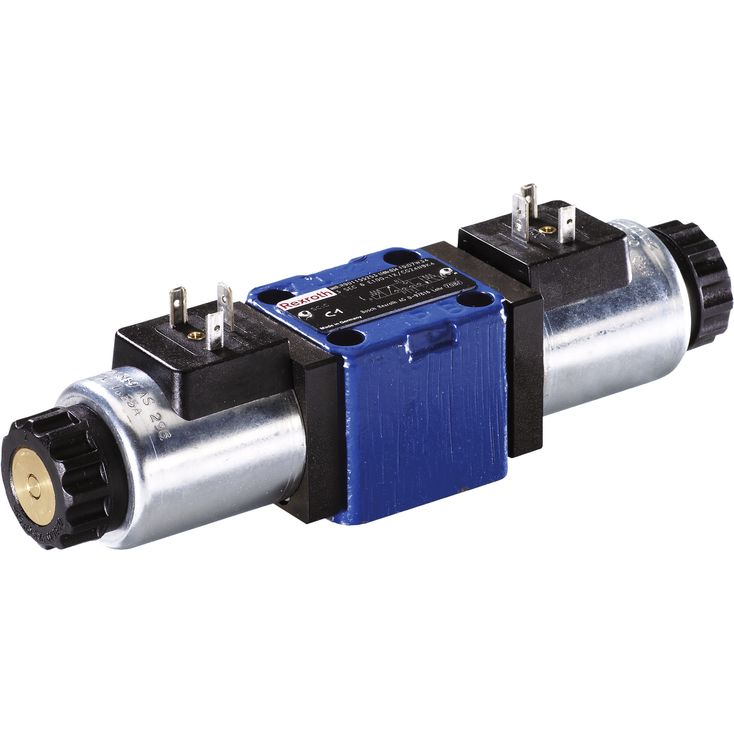

3/3,4 / 2和4/3方向座阀，带电磁阀驱动SEC 6

发布日期：2019-03-26　阅读：次

特征

Technical data

general

Size			6
Weight	3/3 directional seat valve	kg	2.14
	4/2 directional seat valve	kg	1.8
	4/3 directional seat valve	kg	2.14
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +50
Ambient temperature range	FKM seals	°C	-20 … +50
Vibration test according to IEC 68-2-36			10 g RMS, 20 up to 2000 Hz, testing time: 60 min per axis

Size			6
Maximum operating pressure	Port P	bar	420
	Port A	bar	420
	Port B	bar	420
	Port T ¹⁾	bar	100
Maximum flow		l/min	25
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid ²⁾			Class 20/18/15 according to ISO 4406 (c)

¹⁾	p_T < p_P (energized); p_T < 20 if p_A/p_B = 0 (non-energized)
²⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oil		HL, HLP	FKM, NBR	DIN 51524
Bio-degradable	Insoluble in water	HEES (synthetic esters)	FKM	VDMA 24568
		HETG (rape seed oil)	FKM, NBR
	Soluble in water	HEPG (polyglycols)	FKM	VDMA 24568
Other hydraulic fluids on request

Voltage type			Direct voltage	AC voltage
Available voltages ¹⁾		V	12 / 24 / 26 / 48 / 96 / 110 / 125 / 205 / 220	110 / 120 / 230
Voltage tolerance (nominal voltage)		%	± 10
Power consumption		W	30
Duty cycle		%	100
Switching time according to ISO 6403	ON ²⁾	ms	70
	OFF	ms	45 ²⁾	45
Maximum switching frequency		1/h	3600
Protection class according to DIN EN 60529	Version “K4”, “K72L”, “K73L”		IP65 (with mating connector mounted and locked)
	Version "C4"		IP66 with mating connector mounted and locked
Maximum coil temperature ³⁾		°C	120

¹⁾	Special voltages available upon request
²⁾	The switching times are measured according to ISO 6403 with HLP46, ϑ_oil = 40 °C ±5 °C and refer to 5% pressure change. With different oil temperatures, variations are possible!
³⁾	Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

Actuation of the manual override is only possible up to a tank pressure of approx. 50 bar. Avoid damage to the bore of the manual override! (Special tool for the operation, separate order, material no. R900024943). The simultaneous actuation of both solenoids at a duty cycle of 100 % is impossible. When operating both solenoids, a maximum duty cycle of 10 % is admissible.

The shut-off of the solenoids creates voltage peaks, which can be reduced by the use of suitable diodes.

In the set-up mode, a H position can be achieved by controlling both coils (only with the 4/3 directional seat valve with the spool symbol “E”). In order to avoid an overheating of the coils, (according to VDE 0580) in the intermittent operation S3, a duty cycle of 10 % may not be exceeded with a play time of 5 minutes or 50 % at 70 seconds!

Operation with reduced power:
after the switching and achievement of the switching position (approx. 200 ms), the electric power can be reduced to 8 W (e.g. by means of PWM technology).

In the electrical connection, the protective earthing conductor (PE, grounded) is to be connected in accordance with the stipulations.

For applications outside these parameters, please consult us!
