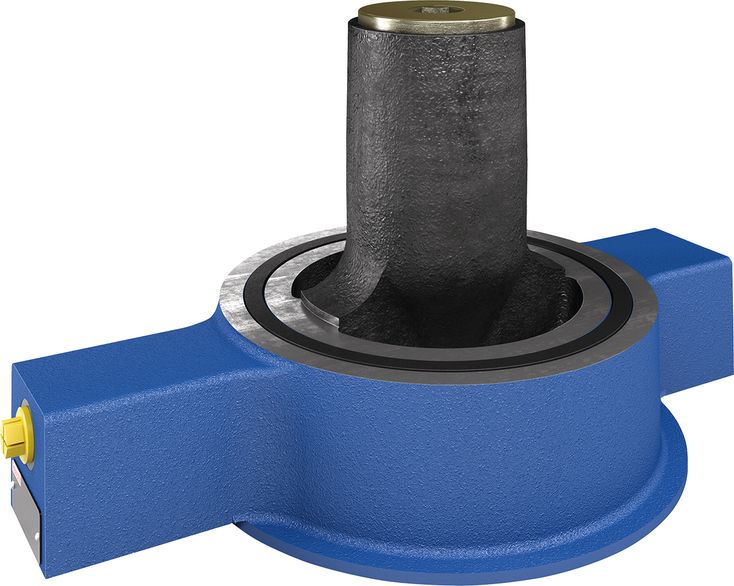

Size |
32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
|
Weight |
kg |
3.5 | 4.2 | 5.5 | 7 | 10 | 15 | 26 | 47 | 150 |
|
Installation position 1) |
any | |||||||||
|
Ambient temperature range 2) |
°C |
-30 … +80 | ||||||||
|
Porting pattern |
ISO 4401-03-02-0-05 | |||||||||
| 1) | Working direction of the control spool |
| 2) | Observe the technical data of the directional valve, see type 4WE 6 D... or type M-.SEW 6... |
|
Size |
32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | ||
|
Maximum operating pressure |
Port P 1) |
bar |
350 | ||||||||
|
Anschluss A |
bar |
16 | |||||||||
|
Port B |
bar |
350 | |||||||||
|
Anschluss X |
bar |
150 | |||||||||
|
Cracking pressure 2) |
bar |
≈ 0.12 | |||||||||
|
Druckflüssigkeit |
see table | ||||||||||
|
Hydraulic fluid temperature range |
°C |
-30 … +70 | |||||||||
|
Viscosity range |
mm²/s |
10 … 800 | |||||||||
|
Maximum admissible degree of contamination of the hydraulic fluid 3) |
Class 20/18/15 according to ISO 4406 (c) | ||||||||||
|
Technical data of the directional valve |
Directional spool valve |
see type 4WE 6 D... | |||||||||
|
Directional seat valve |
see type M-.SEW 6... | ||||||||||
| 1) | Observe the technical data of the directional valve, see type 4WE 6 D... or type M-.SEW 6... |
| 2) | Pressure differential at the main poppet for overcoming the spring force |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
|
Mineral oils |
HL, HLP, HLPD, HVLP, HVLPD |
NBR, FKM |
DIN 51524 |
90220 |
|
|
Bio-degradable |
Insoluble in water |
HETG |
FKM |
ISO 15380 |
90221 |
|
HEES |
FKM |
||||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
|
Flame-resistant |
Water-free |
HFDU (glycol base) |
FKM |
ISO 12922 |
90222 |
|
HFDU (ester base) |
FKM |
||||
|
HFDR |
FKM |
||||
|
Containing water |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
90223 |
|
|
Important information on hydraulic fluids:
|
|||||
|
Size |
32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
|
Case of application 1 |
l/min |
200 | 300 | 500 | 800 | 1200 | 1900 | 3000 | 4200 | 7000 |
|
Case of application 2 |
l/min |
170 | 250 | 400 | 650 | 1000 | 1600 | 2600 | 3900 | 6510 |
|
Case of application 3 |
l/min |
140 | 220 | 360 | 560 | 900 | 1400 | 2200 | 3400 | 5670 |
|
Case of application 4 |
l/min |
100 | 150 | 240 | 380 | 620 | 950 | 1500 | 2300 | 3850 |
|
Case of application 5 |
l/min |
70 | 110 | 170 | 280 | 450 | 700 | 1100 | 1690 | 2800 |
Size of the filling tank at least 1.5 x cylinder content
For limit areas, please contact us. It is often enough, to select a pipeline which is one size larger.
Note:
Wrong dimensioning of prefill valve and suction line may cause cavitation and consequential damage.
|
1 |
Cylinders |
|
2 |
Prefill valve |
|
3 |
This sheet is not included in the scope of delivery. With smaller tank dimensions and minimum hydraulic fluid level (a), it prevents the formation of tunnels. |
|
4 |
Observe the supply cross-section |
|
a |
at least 300 mm with extended cylinder |
|
b |
up to 1000 mm with the specified maximum flows |
|
c |
h ≤ 500 mm |
|
h |
300 mm ≤ h < 500 mm |
For applications outside these parameters, please consult us!
