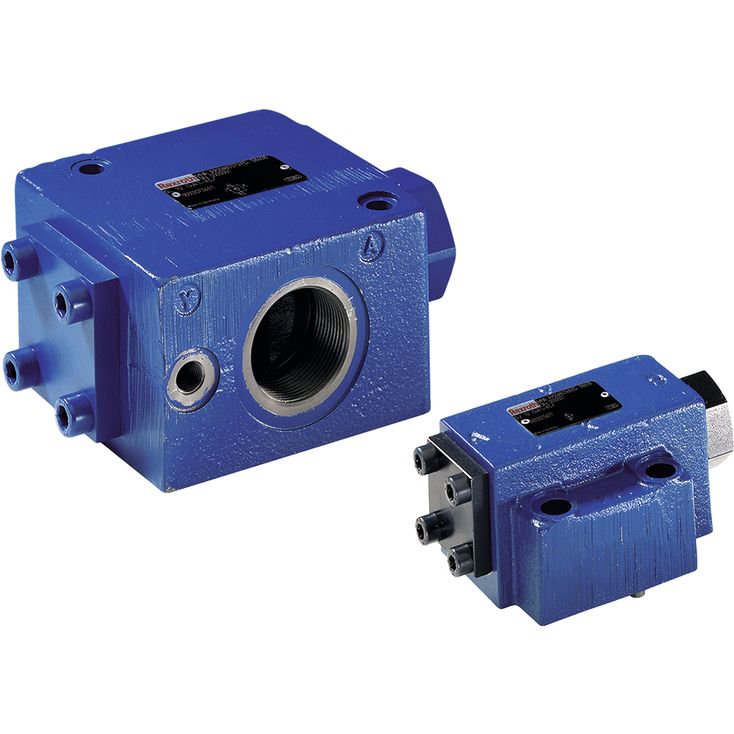

Size |
10 | 20 | 32 | ||
|
Weight |
Subplate mounting |
kg |
1.8 | 4.7 | 7.8 |
|
Threaded connection |
kg |
2.1 | 5.4 | 10 | |
|
Installation position |
any | ||||
|
Ambient temperature range |
NBR seals |
°C |
-30 … +80 | ||
|
FKM seals |
°C |
-20 … +80 | |||
|
MTTFD values according to EN ISO 13849 1) |
Years |
150 | |||
|
Maximum storage time 2) |
Months |
12 | |||
| 1) | For further details, see data sheet 08012 |
| 2) | If the storage conditions are observed; refer to the operating instructions 07600-B |
|
Size |
10 | 20 | 32 | ||
|
Maximum operating pressure |
bar |
315 | |||
|
Cracking pressure |
bar |
1.5 / 3 / 6 / 10 | 2.5 / 5 / 7.5 / 10 | 2.5 / 5 / 8 / 10 | |
|
Minimum pilot pressure |
bar |
5 | |||
|
Maximum pilot pressure |
bar |
315 | |||
|
Maximum flow |
See characteristic curves | ||||
|
Direction of flow |
Free from A → B, from B → A by opening | ||||
|
Hydraulic fluid |
see table below | ||||
|
Hydraulic fluid temperature range |
NBR seals |
°C |
-30 … +80 | ||
|
FPM seals |
°C |
-20 … +80 | |||
|
Viscosity range |
mm²/s |
2.8 … 500 | |||
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 20/18/15 | ||||
|
Pilot volume |
Port X |
cm³ |
2.5 | 10.8 | 19.27 |
|
Port Y |
cm³ |
2 | 9.6 | 17.5 | |
|
Control area A1 2) |
cm² |
1.33 | 3.46 | 5.72 | |
|
Control area A2 2) |
cm² |
0.33 | 0.7 | 1.33 | |
|
Control area A3 2) |
cm² |
3.8 | 10.17 | 16.61 | |
|
Control area A4 2) |
cm² |
0.79 | 1.13 | 1.54 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | Areas according to sectional drawing, see "Product description" |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
|
Mineral oils |
HL, HLP, HLPD, HVLP, HVLPD |
NBR, FKM |
DIN 51524 |
90220 |
|
|
Bio-degradable |
Insoluble in water |
HETG 1) |
NBR, FKM |
ISO 15380 |
90221 |
|
HEES 1) |
FKM |
||||
|
Soluble in water |
HEPG 1) |
FKM |
ISO 15380 |
||
|
Flame-resistant |
Water-free |
HFDU (glycol base) |
FKM |
ISO 12922 |
90222 |
|
HFDU (ester base) 1) |
FKM |
||||
|
HFDR |
FKM |
||||
|
Containing water |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) 1) |
NBR |
ISO 12922 |
90223 |
|
|
Important information on hydraulic fluids:
|
|||||
| 1) | Not recommended for corrosion-protected version "J3" (contains zinc) |
For applications outside these parameters, please consult us!
