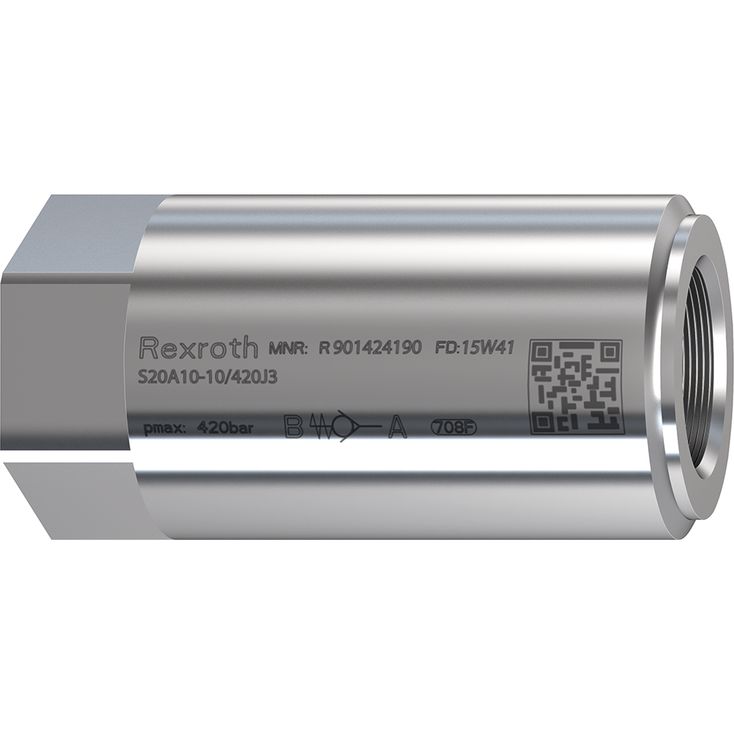

止回阀S6 ... S30 A ..- 1X / ...

发布日期：2019-03-22　阅读：次

大小6 ... 30
组件系列1X
最大工作压力450 bar
最大流量450升/分钟

特征

用于螺纹连接（旋入式螺纹）
在一个方向上无泄漏阻塞
各种开裂压力，可选

Technical data

general

Size		6	8	10	15	20	25	30
Weight	kg	0.1	0.2	0.3	0.5	1	2	2.5
MTTF_D values according to EN ISO 13849	Years	150 ¹⁾

¹⁾	Not for version "00"; Certificate "Assumed exclusion of faults according to EN ISO 13849-2:2012-10 tab. C4" available upon request. For further details, see data sheet 08012

hydraulic

Size		6	8	10	15	20	25	30
Maximum operating pressure ¹⁾	bar	450					420
Cracking pressure		See characteristic curves
Maximum flow		See characteristic curves
Hydraulic fluid		see table
Hydraulic fluid temperature range	°C	-30 … +80
Viscosity range	mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid ²⁾		Class 20/18/15 according to ISO 4406 (c)

¹⁾	Maximum operating pressures up to 1000 bar upon request.
²⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Standards	Data sheet
Mineral oils		HL,HLP, HLPD, HVLP, HVLPD	DIN 51524	90220
Bio-degradable ¹⁾	Insoluble in water	HETG	ISO 15380	90221
		HEES
	Soluble in water	HEPG	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)
		HFDU (ester base) ¹⁾	ISO 12922	90222
	Containing water ¹⁾	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	ISO 12922	90223
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Flame-resistant – containing water: Life cycle as compared to operation with mineral oil HL, HLP 30 … 100% Maximum hydraulic fluid temperature 60 °C

¹⁾	Small amounts of dissolved zinc may get into the hydraulic system during use.

For applications outside these parameters, please consult us!
