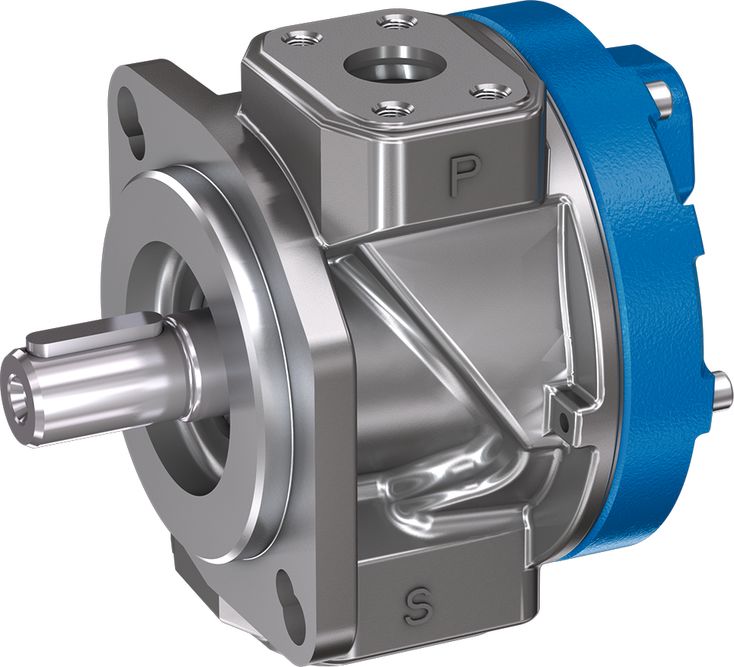

Frame size |
|
4 | 5 | ||||||||||
|
Size |
|
20 | 32 | 40 | 50 | 63 | 80 | 63 | 80 | 100 | 140 | ||
|
Mounting type |
|
ISO 4-hole mounting flange according to ISO 3019-2 and VDMA 24560 SAE 2-hole mounting flange ISO 2-hole mounting flange according to ISO 3019-2, secondary pump for through-drive KB2 ISO 2-hole mounting flange according to ISO 3019-2, secondary pump for through-drive KB3 |
|||||||||||
|
Line connections |
|
Flange connection | |||||||||||
|
Shaft load |
|
Radial and axial forces cannot be transmitted | |||||||||||
|
Direction of rotation |
|
Clockwise rotation (looking at the shaft end) | |||||||||||
|
Drive speed |
n |
rpm |
200 ... 3,000 | 200 ... 2,300 | 200 ... 1,800 | 200 ... 3,000 | 200 ... 2,300 | 200 ... 1,800 | 200 ... 1,500 | ||||
|
Displacement |
Vg |
cm³ |
21 | 33.4 | 42.1 | 52 | 64.4 | 84.2 | 64.4 | 84.2 | 105.3 | 136.3 | |
|
Minimum drive power required |
at Δp ≈ 1 bar, n ≈ 1450 rpm |
kW |
0.75 | 1.1 | 1.5 | ||||||||
|
at Δp ≈ 10 bar, n ≈ 1450 rpm |
kW |
1.5 | 2.2 | 3 | 4 | 5.5 | |||||||
|
Flow, max. 1) |
qV |
l/min |
28 | 46 | 58 | 71 | 88 | 116 | 88 | 116 | 144 | 186 | |
|
Operating pressure, absolute 2) |
Inlet |
pmin-max |
bar |
0.7 ... 2 | |||||||||
|
Nominal pressure, permanent |
Outlet |
pN |
bar |
15 | |||||||||
|
Mass |
m |
kg |
4.7 | 5.3 | 5.6 | 6 | 6.7 | 7.8 | 6.6 | 7.7 | 8.9 | 10.7 | |
| 1) | Measured n = 1450 rpm, p = 10 bar and v = 30 mm²/s |
| 2) | Short-time, during start 0,5 bar |
Hydraulic fluid
|
Hydraulic fluid |
||
|
Permissible hydraulic fluid 1) |
Mineral oil (HLP) to DIN 51524-2 | |
|
Hydraulic fluid temperature range 2) |
°C |
-20 … +80 |
|
Ambient temperature range |
°C |
-20 … +80 |
|
Viscosity range |
mm²/s |
10 … 2,000 |
|
Maximum admissible degree of contamination of the hydraulic fluid 3) |
Class 21/18/15 according to ISO 4406 (c) |
| 1) | Other hydraulic fluids on request |
| 2) | Observe the admissible viscosity range! |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
For applications outside these parameters, please consult us!
